Content → Mono-layer roofs → With thermal insulation with reverse order of layers → Trafficable → Terraces → pavers on stands → Plastic foil waterproofing → anchored drainage layer (HL350.1) → For roof area up to 65m2

drawing


MagnifyDXFPDF

Detail

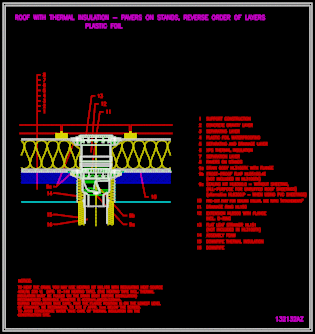

drawing 132132az

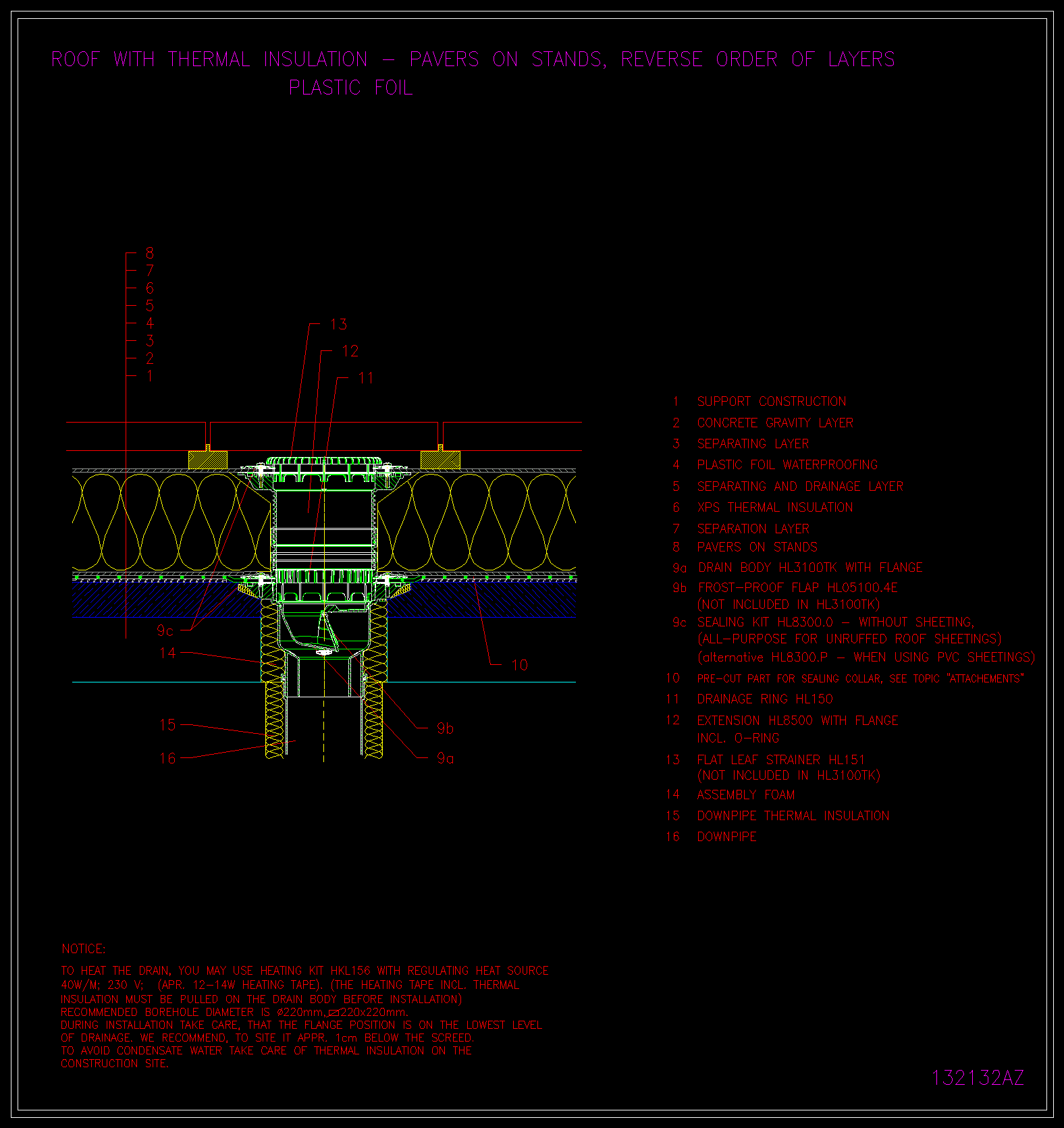

layer section

· pavers on stands
· separating membrane
· XPS thermal insulation
· separating membrane with draining function
· plastic foil waterproofing
· separating membrane
· concrete (gravity layer or ceiling structure)
