Content → Mono-layer roofs → With thermal insulation with reverse order of layers → Trafficable → Terraces → Pavement embedded in concrete → Plastic foil waterproofing → anchored drainage layer (HL350.1)

drawing


MagnifyDXFPDF

Provozní střechy (vtoky se zápachovou klapkou)


For roof area till 25m2

For roof area up to 65m2

For roof area more than 65m2

Detail

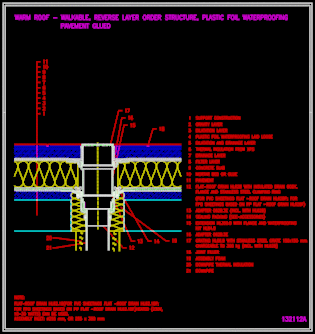

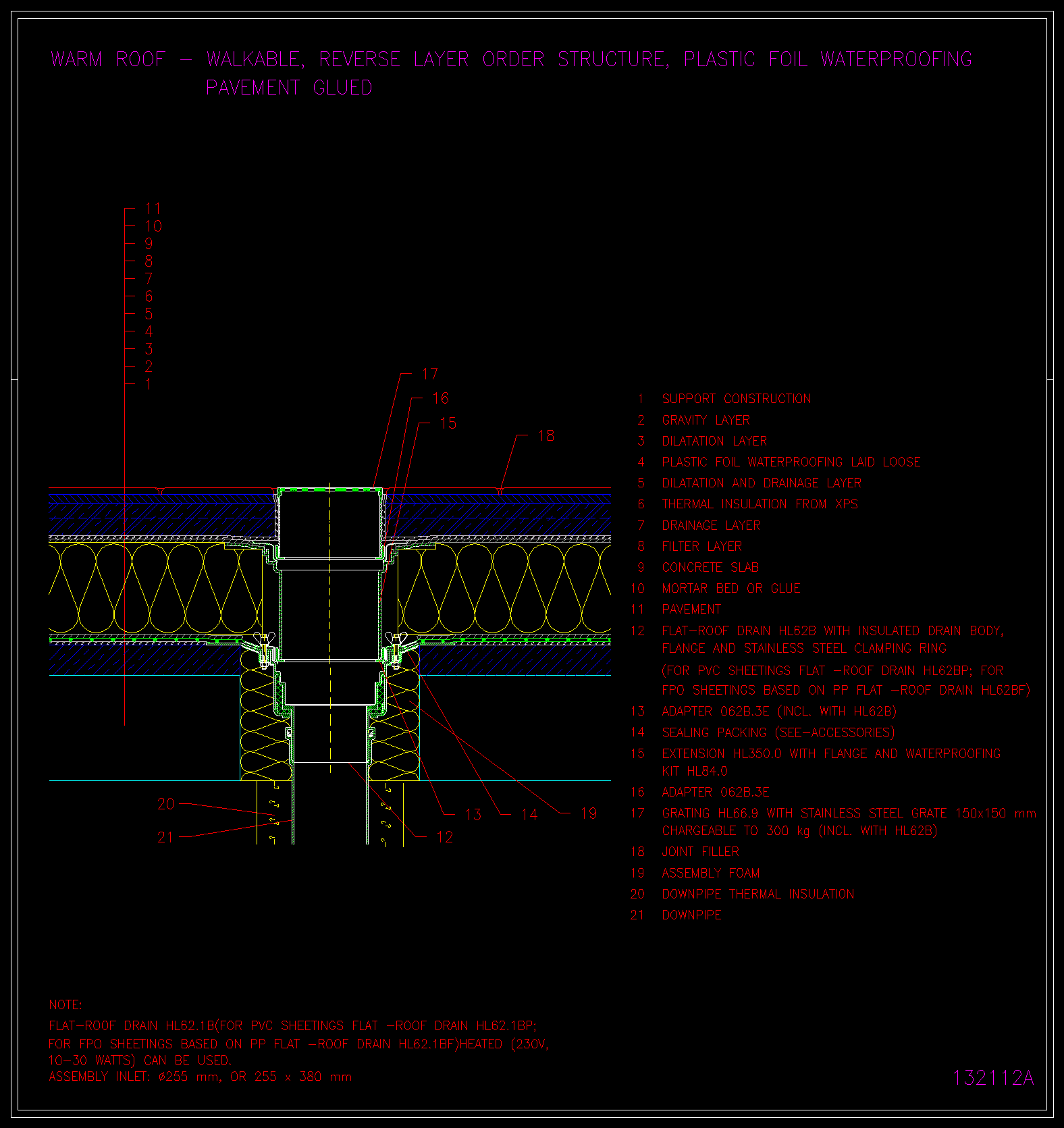

drawing 132112a

layer section

· pavement
· mortar bed
· concrete slab
· filter layer
· drainage layer
· XPS thermal insulation
· separating membrane with draining function
· plastic foil waterproofing
· separating membrane
· concrete (gravity layer or ceiling structure)
