Provozní střechy (vtoky se zápachovou klapkou)
|
Detail
drawing

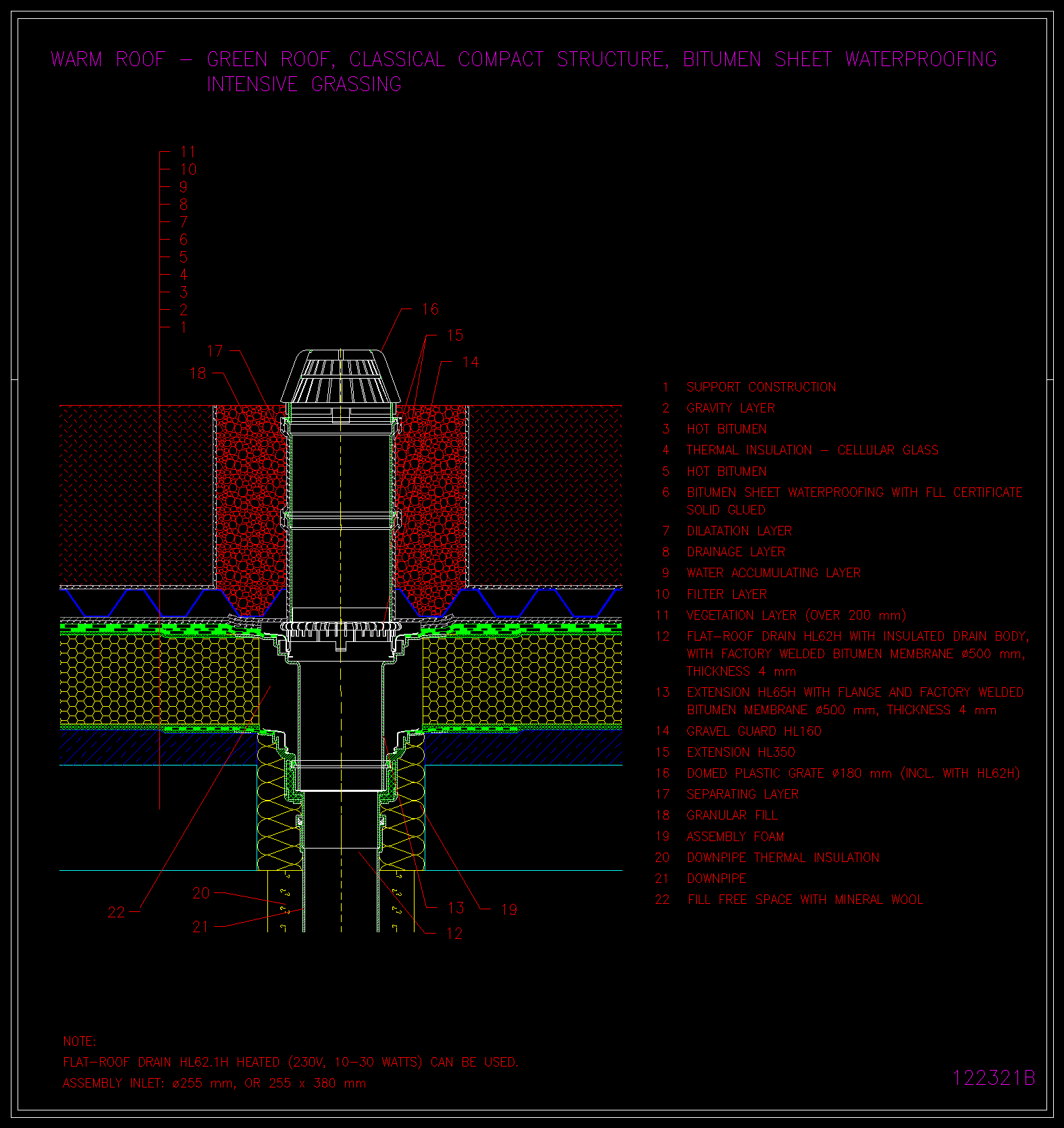

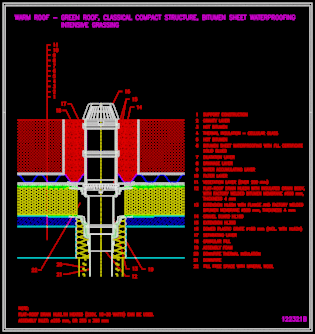

122321b
layer section
· vegetation layer over 200mm
· filter layer
· water accumulating layer
· drainage layer
· separating membrane
· bitumen sheet waterproofing
· thermal insulation - foamed glass
· concrete (gravity layer or ceiling structure)
