Content → Mono-layer roofs → With thermal insulation with combined order of layers → Trafficable → Grassing → Extensive → Bitumen sheet waterproofing → Standard structure → For roof area up to 65m2

drawing


MagnifyDXFPDF

Detail

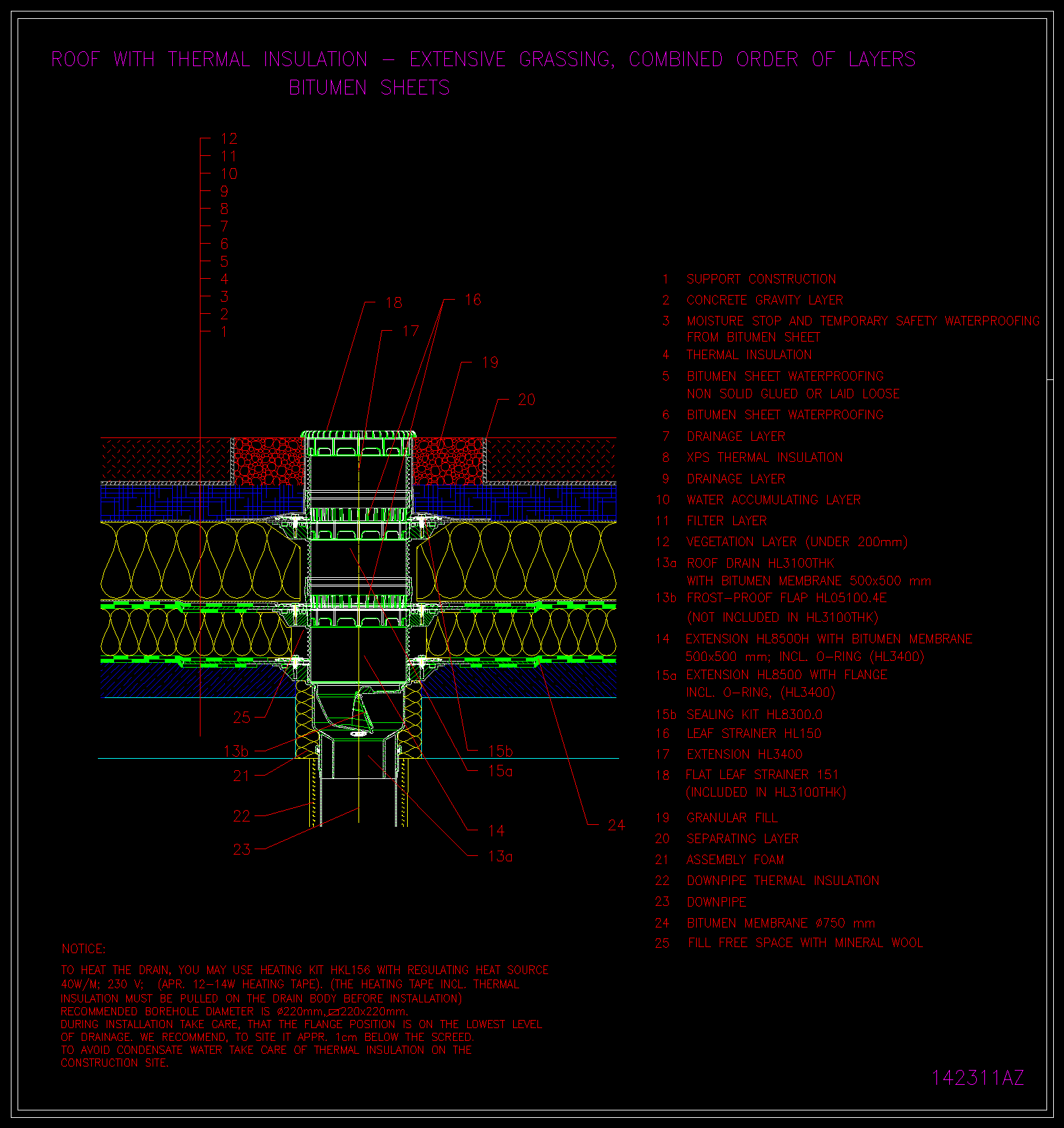

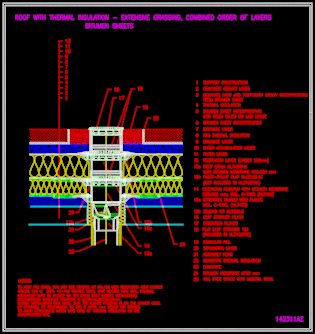

drawing 142311az

layer section

· vegetation layer under 200mm
· filter layer
· water accumulating layer
· drainage layer
· XPS thermal insulation
· drainage layer
· bitumen sheet waterproofing
· thermal insulation
· moisture stop and temporary safety waterproofing
· concrete (gravity layer or ceiling structure)

Recommended products

HL3100THK

HL8500H

HL8500

HL8300.0

HL150

HL3400

HL151

HL05100.4E

Comment

Heated roof drains
Attachments
Installation advice
Help
