Content → Mono-layer roofs → With thermal insulation with combined order of layers → Trafficable → Terraces → Pavement embedded in concrete → Plastic foil waterproofing → For roof area up to 65m2

drawing


MagnifyDXFPDF

Detail

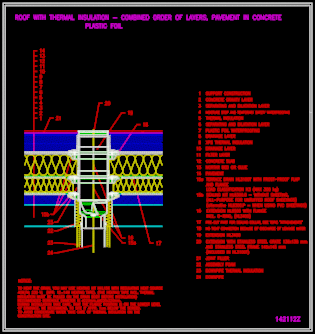

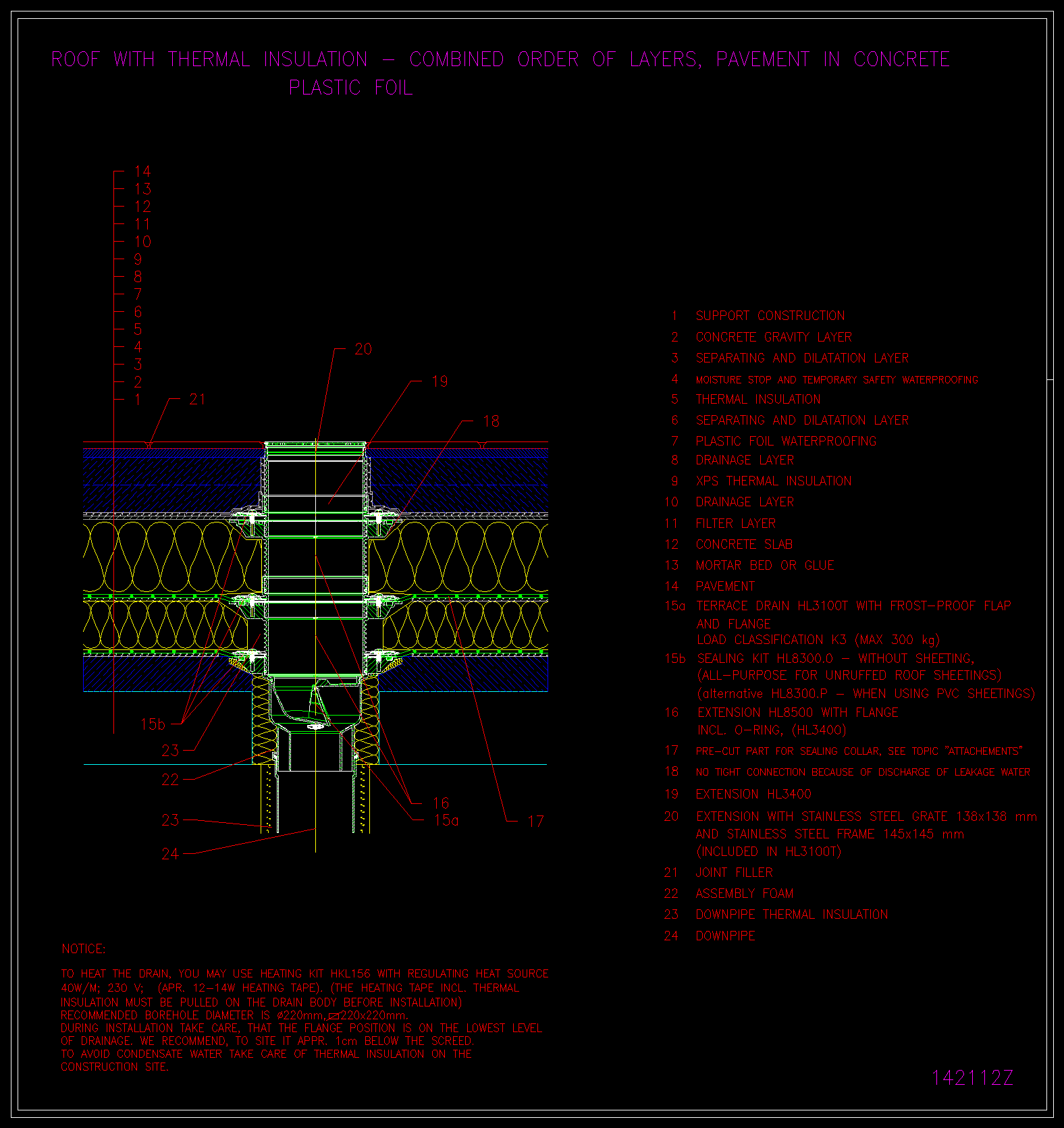

drawing 142112z

layer section

· pavement
· mortar bed
· concrete slab
· filter layer
· drainage layer
· XPS thermal insulation
· separating membrane with draining function
· plastic foil waterproofing
· thermal insulation
· moisture stop and temporary safety waterproofing
· concrete (gravity layer or ceiling structure)
