Content → Mono-layer roofs → With thermal insulation with classical layers → Trafficable → Grassing → Extensive → Bitumen sheet waterproofing → Classical roof cladding structure variant → For roof area up to 65m2

drawing


MagnifyDXFPDF

Detail

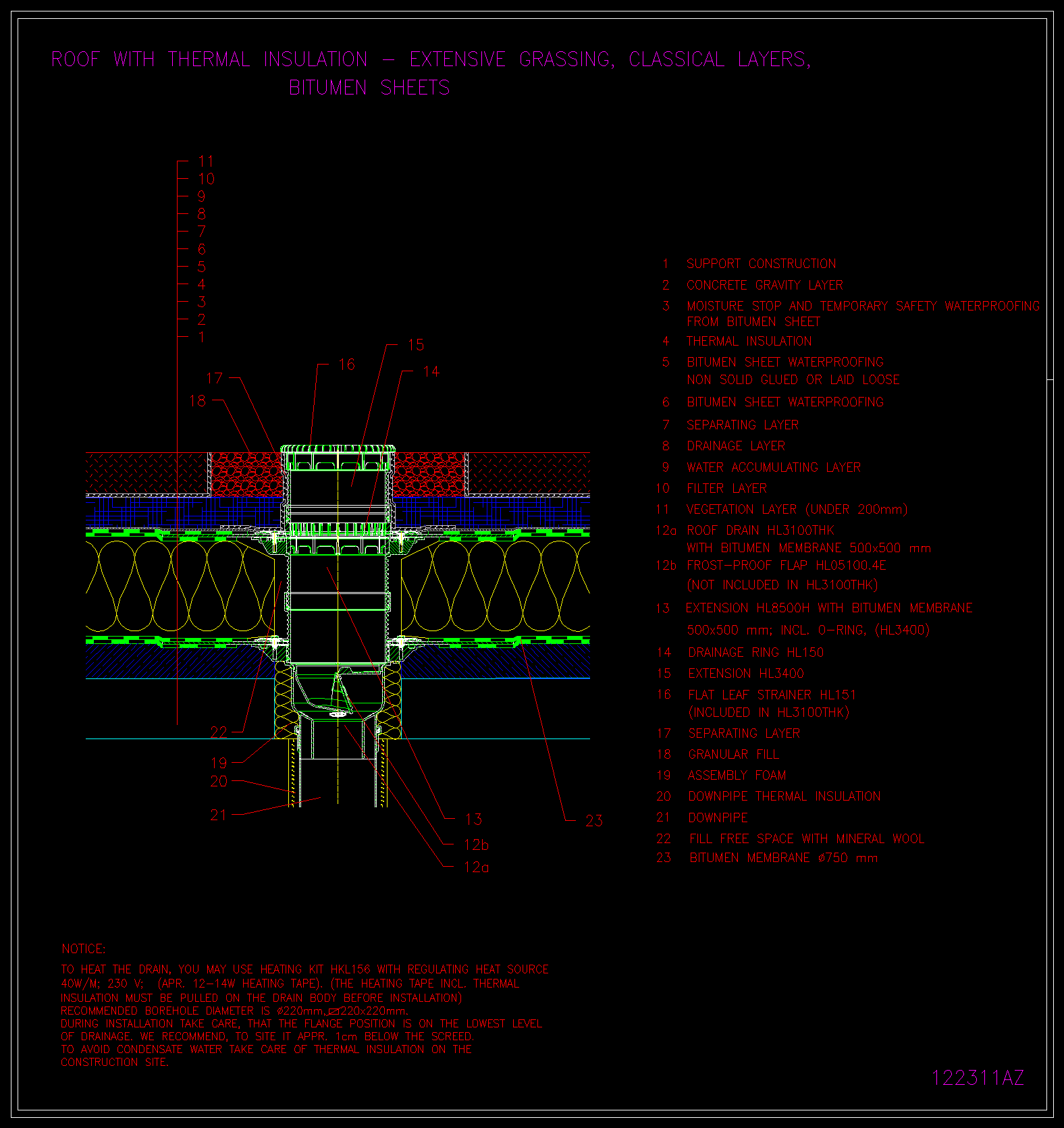

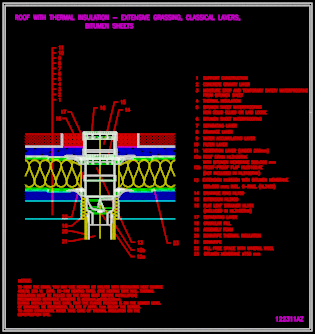

drawing 122311az

layer section

· vegetation layer under 200mm
· filter layer
· water accumulating layer
· drainage layer
· separating membrane
· bitumen sheet waterproofing
· thermal insulation
· moisture stop and temporary safety waterproofing
· concrete (gravity layer or ceiling structure)
