Content → Mono-layer roofs → With thermal insulation with combined order of layers → Trafficable → Grassing → Extensive → Plastic foil waterproofing → For roof area more than 65m2

drawing


MagnifyDXFPDF

Detail

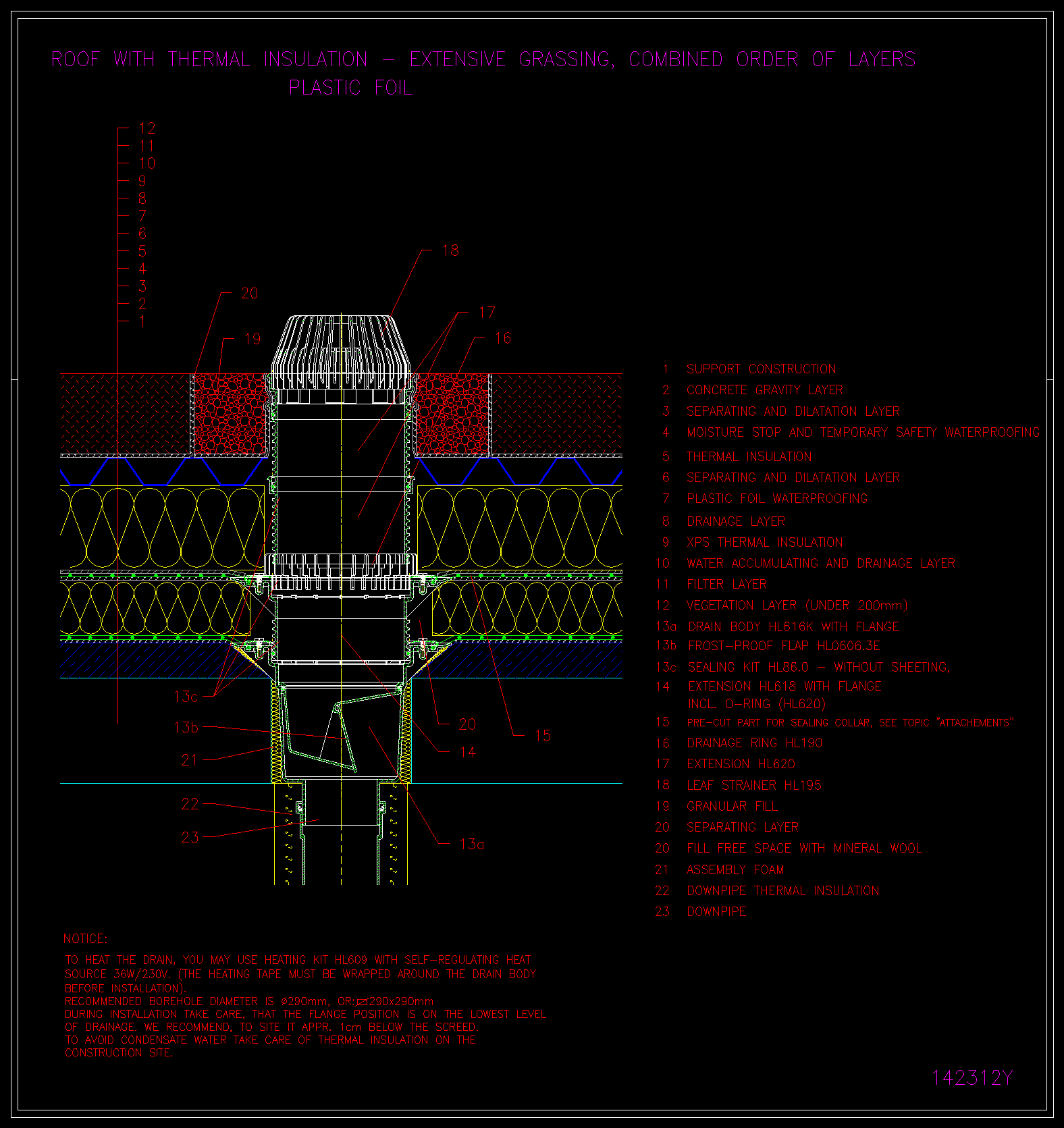

drawing 142312y

layer section

· vegetation layer under 200mm
· filter layer
· water accumulating layer
· drainage layer
· XPS thermal insulation
· separating membrane with draining function
· plastic foil waterproofing
· thermal insulation
· moisture stop and temporary safety waterproofing
· concrete (gravity layer or ceiling structure)
