Content → Mono-layer roofs → With thermal insulation with reverse order of layers → Trafficable → Car park → Bitumen sheet waterproofing → anchored drainage layer (HL350.1) → For roof area from 25m2

drawing


MagnifyDXFPDF

Detail

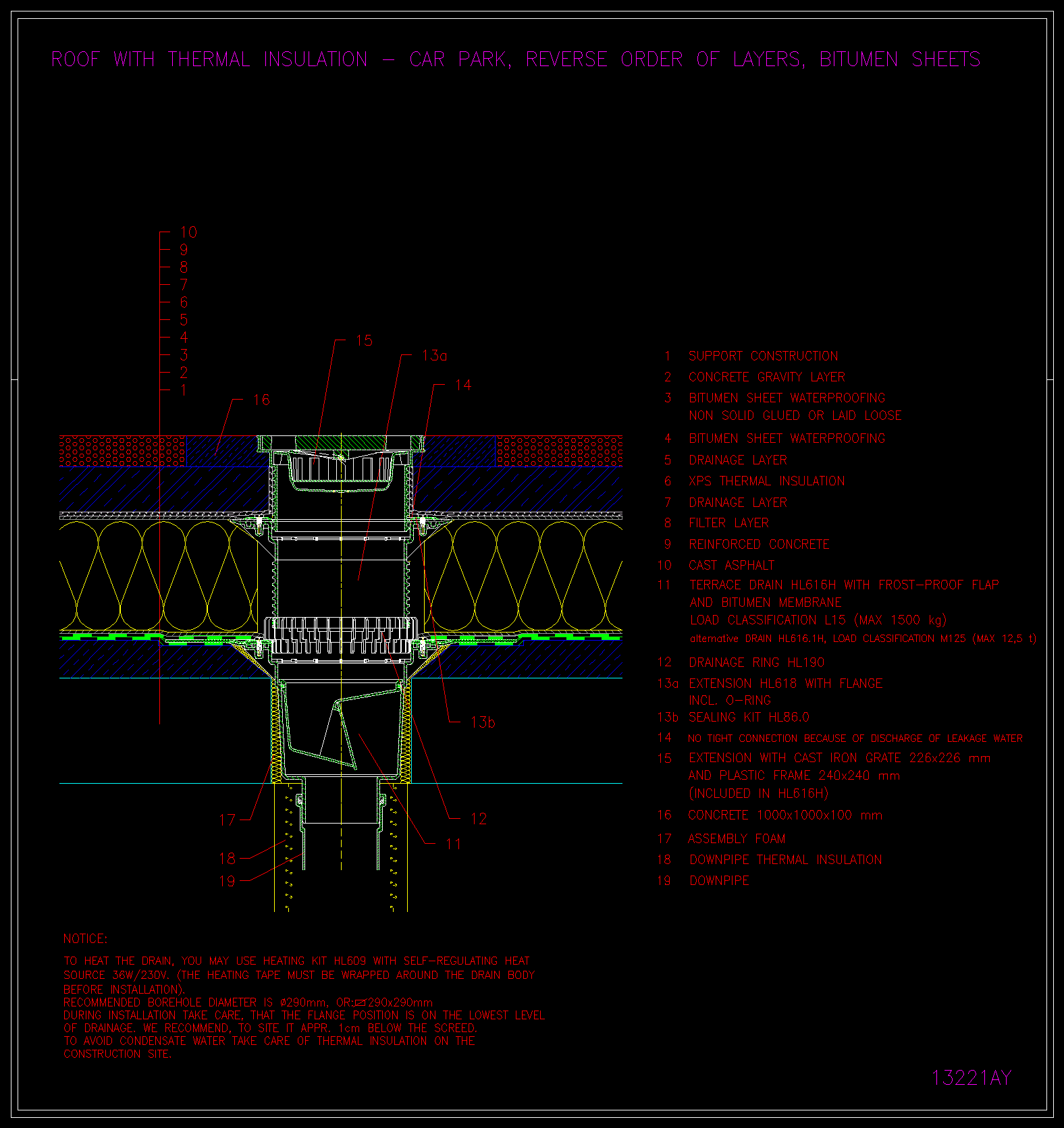

drawing 13221ay

layer section

· cast asphalt
· reinforced concrete
· filter layer
· drainage layer
· XPS thermal insulation
· drainage layer
· bitumen sheet waterproofing
· dilatation layer
· concrete (gravity layer or ceiling structure)

Recommended products

HL616H

HL618

HL86.0

HL190

HL620

Comment

Heated roof drains
Attachments
Installation advice
