Content → Mono-layer roofs → With thermal insulation with classical layers → Trafficable → Car park → Classical structure → Bitumen sheet waterproofing → For roof area till 25m2

drawing


MagnifyDXFPDF

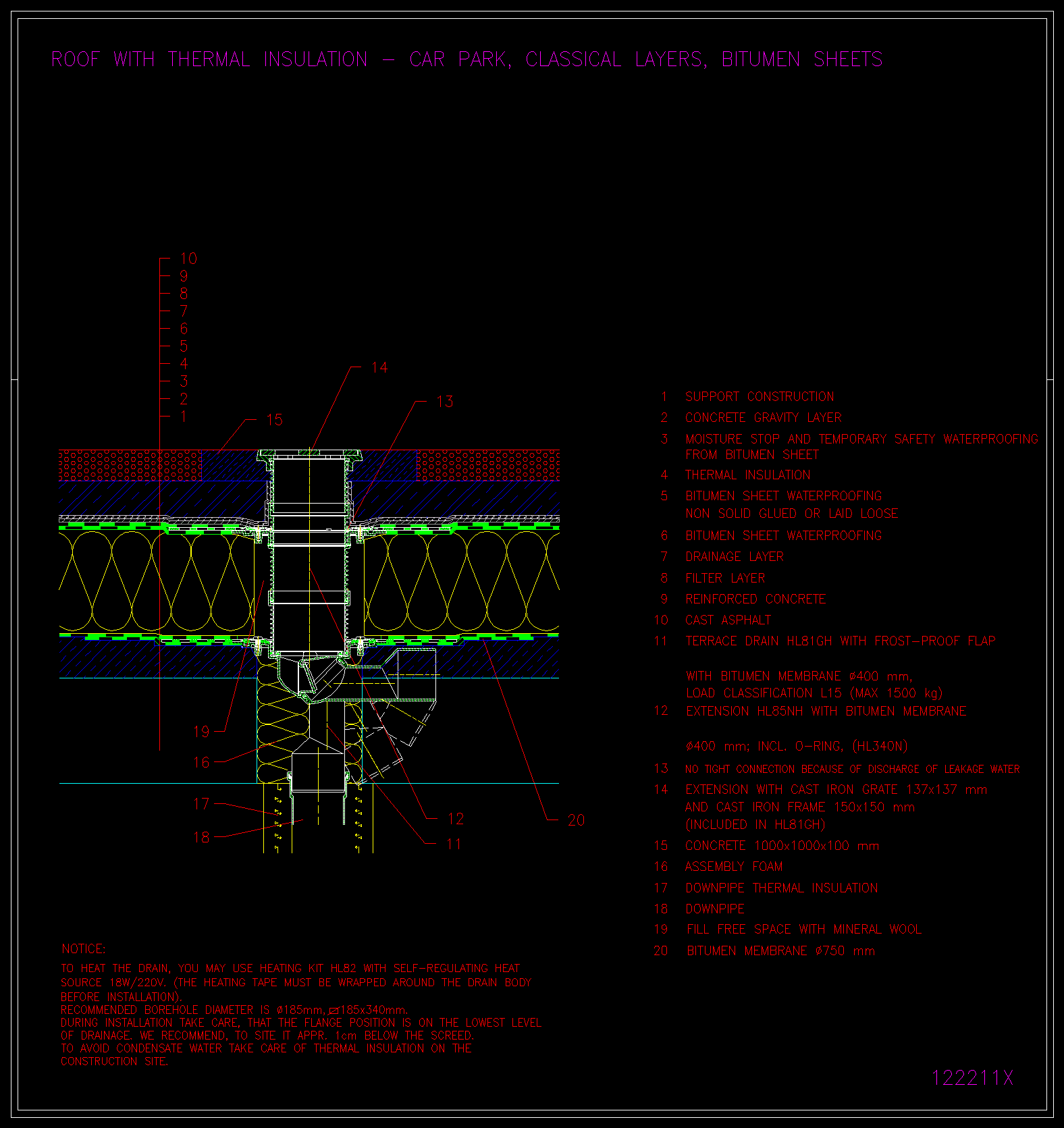

Detail

drawing 122211x

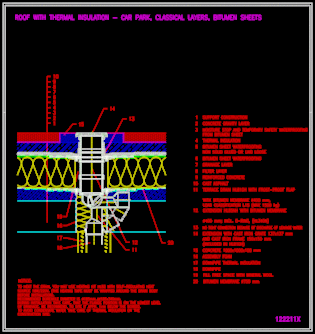

layer section

· cast asphalt
· reinforced concrete
· filter layer
· drainage layer
· dilatation layer
· bitumen sheet waterproofing
· thermal insulation
· moisture stop and temporary safety waterproofing
· concrete (gravity layer or ceiling structure)

Recommended products

HL81GH

HL85NH

HL340N

Comment
