Content → Mono-layer roofs → With thermal insulation with classical layers → Trafficable → Terraces → Pavement embedded in subbase → Bitumen sheet waterproofing → Compact roof variant → For roof area till 25m2

drawing


MagnifyDXFPDF

Detail

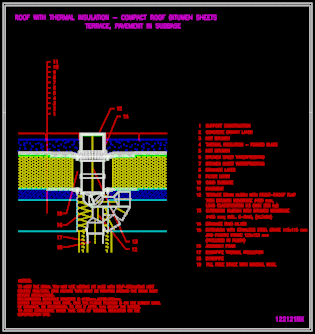

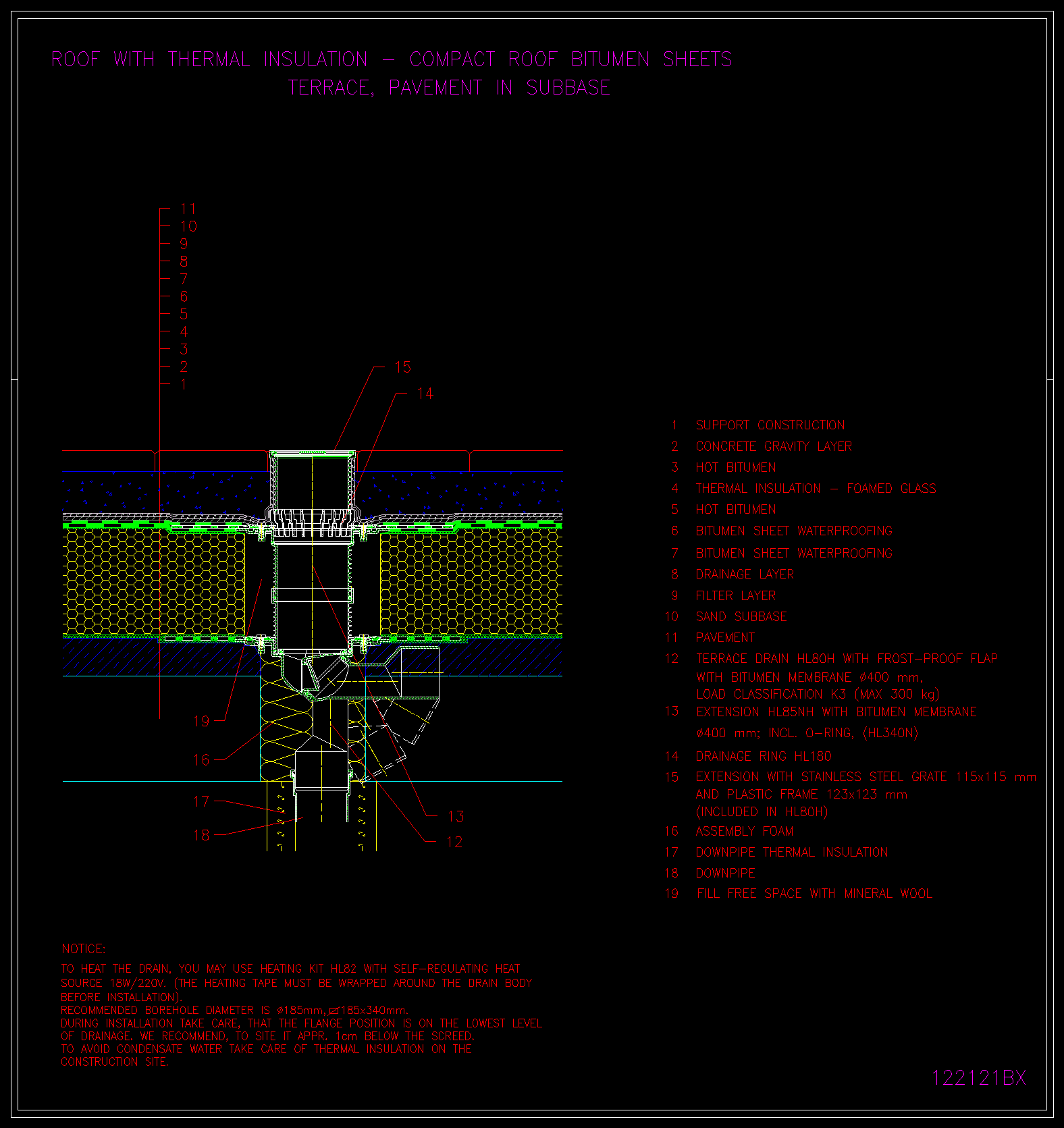

drawing 122121bx

layer section

· pavement
· sand subbase
· filter layer
· drainage layer
· bitumen sheet waterproofing
· thermal insulation - foamed glass
· concrete (gravity layer or ceiling structure)
