Content → Double-layer roofs → With upper cladding thermal insulation → Bitumen sheet waterproofing → Anchored system

drawing


MagnifyDXFPDF

Detail

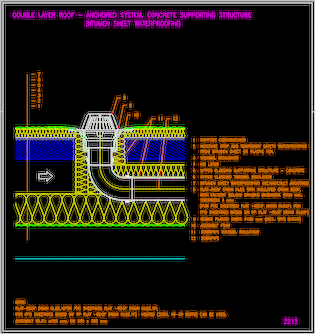

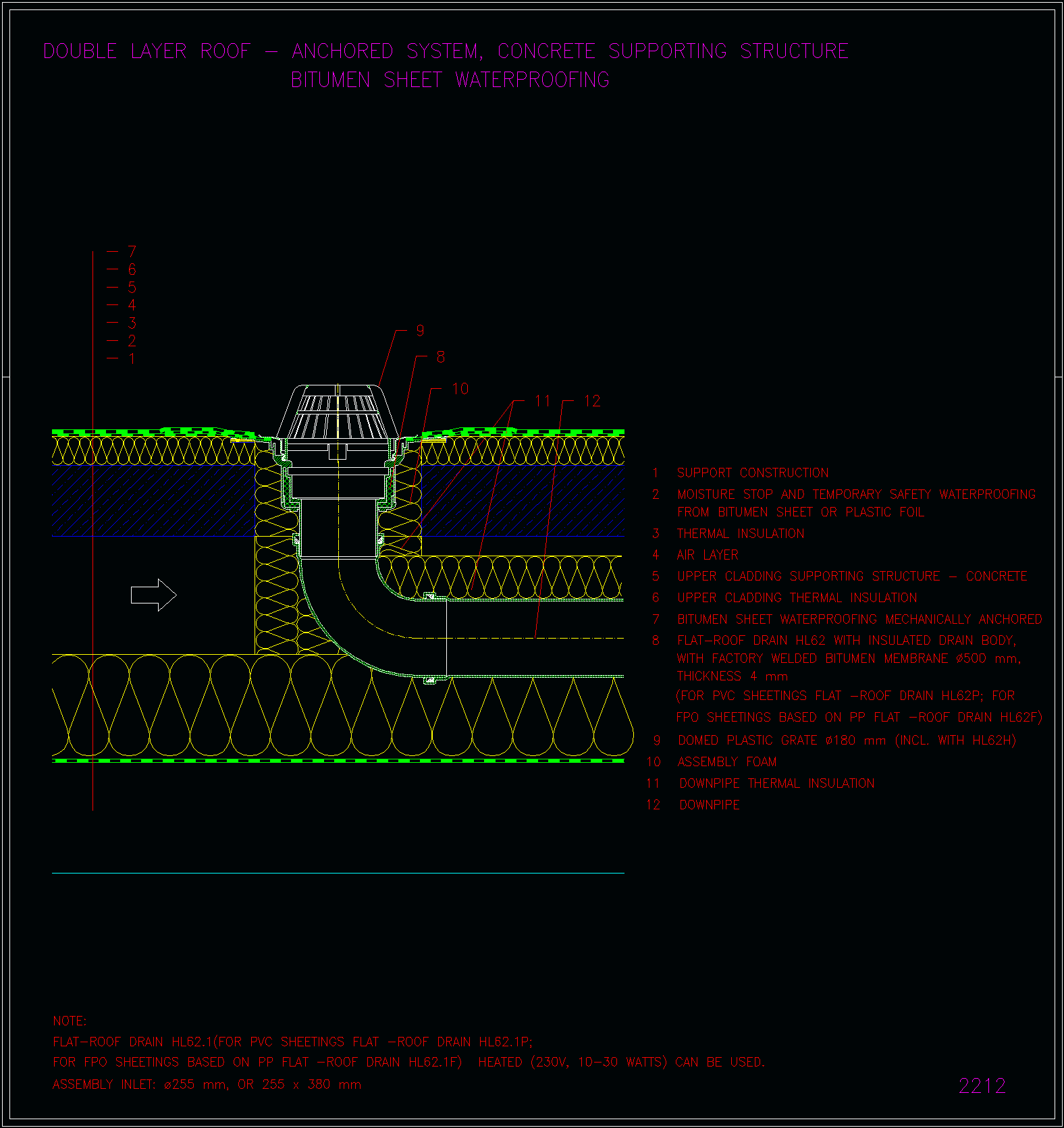

drawing 2212

layer section

· bitumen sheet waterproofing
· thermal insulation
· upper cladding supporting structure (concrete, trapezoidal plate or boarding)
· air layer
· thermal insulation
· moisture stop
· bottom cladding supporting structure

Recommended products

HL62H

Comment

Heated roof drains
Attachments
Installation advice
