Content → Mono-layer roofs → With thermal insulation with combined order of layers → Non-trafficable → Roofing assembly underlayer - concrete → Bitumen sheet waterproofing → Compact roof with combined order of layers

drawing


MagnifyDXFPDF

Detail

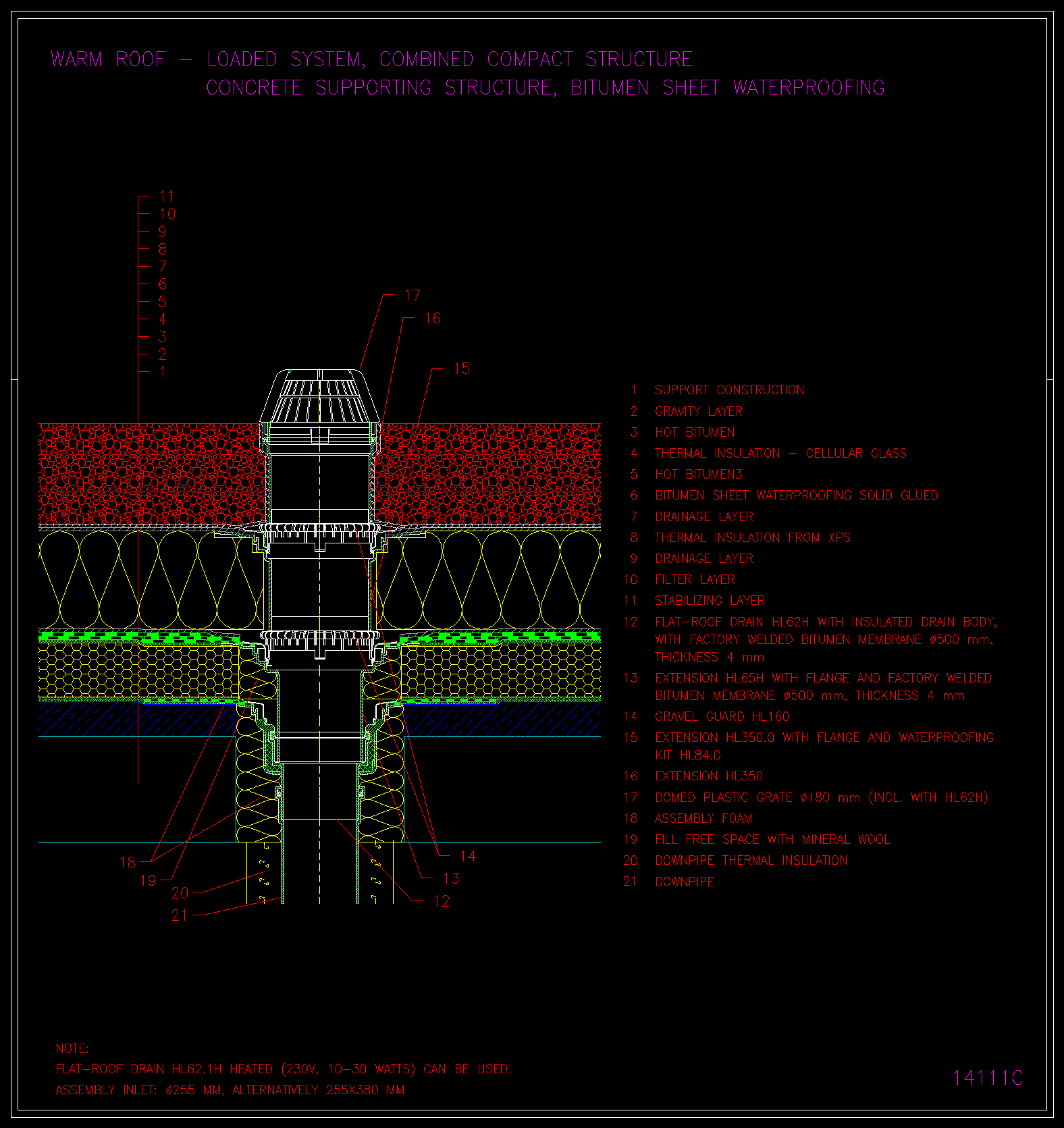

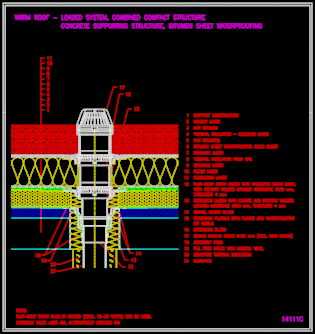

drawing 14111c

layer section

· stabilizing layer
· filter layer
· drainage layer
· XPS thermal insulation
· drainage layer
· bitumen sheet waterproofing
· thermal insulation - foamed glass
· concrete (gravity layer or ceiling structure)

Recommended products

HL62H

HL65H

HL160

HL350

HL350.0

Comment

Heated roof drains
