Content → Mono-layer roofs → With thermal insulation with classical layers → Non-trafficable → Roofing assembly underlayer - concrete → Plastic foil waterproofing → Loaded system → Variant without moisture stop

drawing


MagnifyDXFPDF

Detail

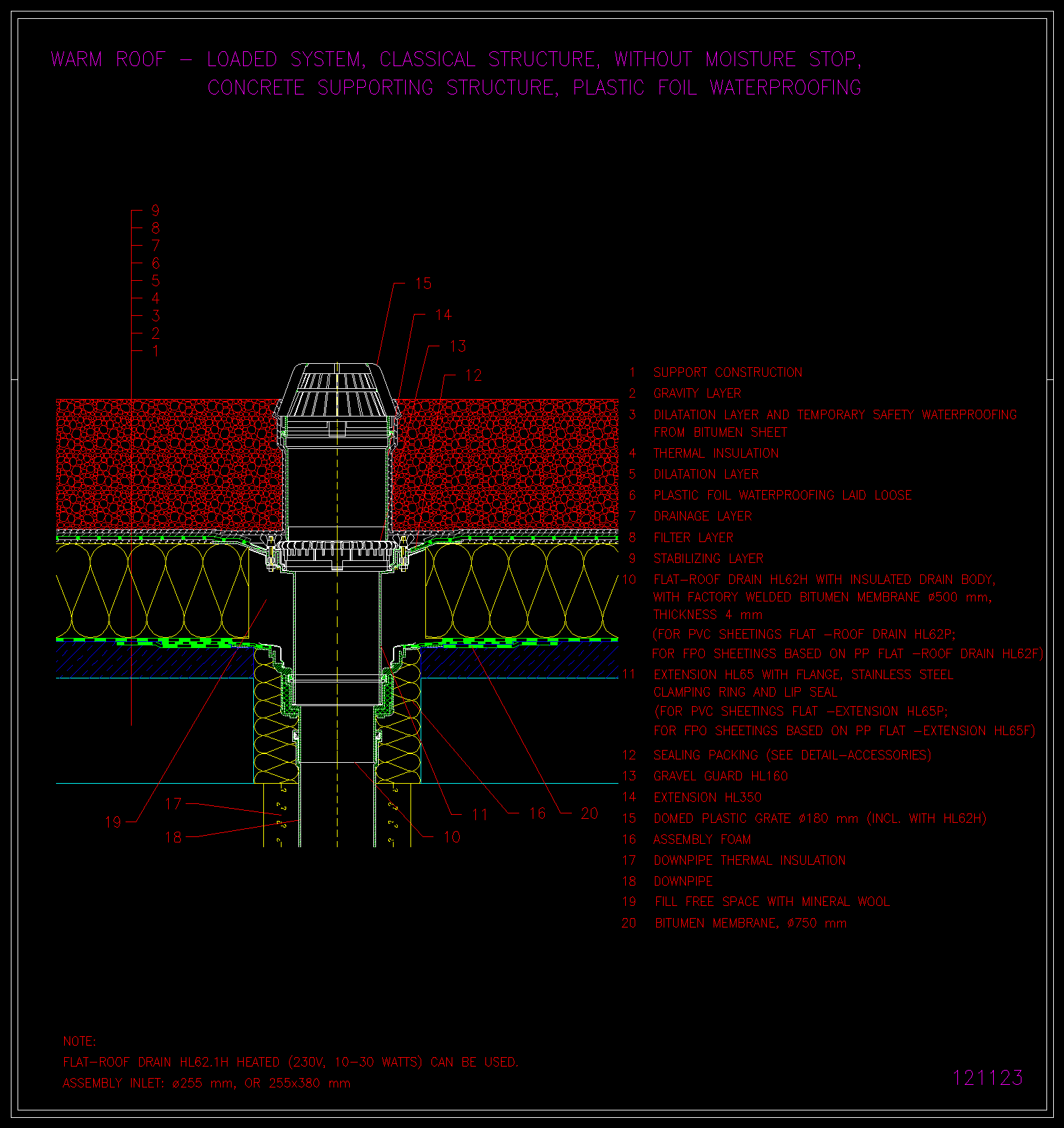

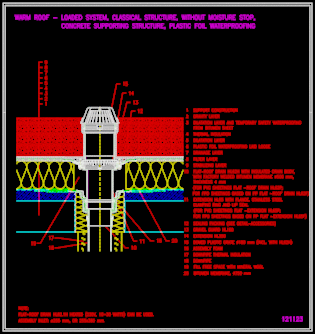

drawing 121123

layer section

· stabilizing layer
· filter layer
· drainage layer
· plastic foil waterproofing
· thermal insulation
· separating membrane
· concrete (gravity layer or ceiling structure)
