Content → Mono-layer roofs → With thermal insulation with classical layers → Non-trafficable → Roofing assembly underlayer - concrete → Bitumen sheet waterproofing → Glued system → Variant without moisture stop

drawing


MagnifyDXFPDF

Detail

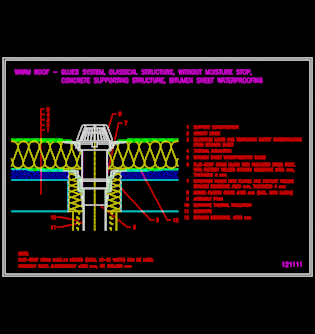

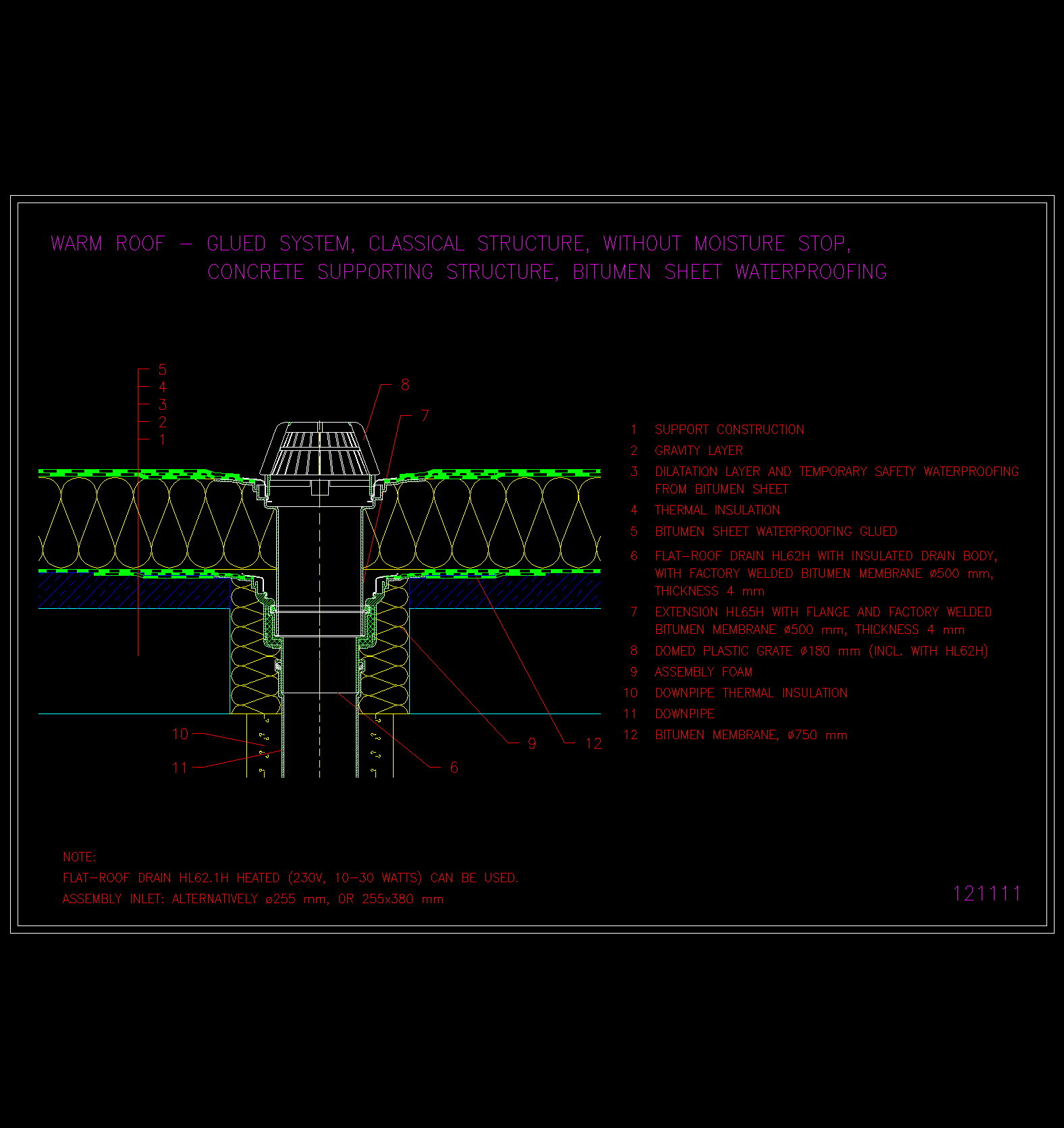

drawing 121111

layer section

· bitumen sheet waterproofing
· thermal insulation
· separating membrane
· concrete (gravity layer or ceiling structure)
