Provozní střechy (vtoky se zápachovou klapkou)


For roof area till 25m2

For roof area up to 65m2

For roof area more than 65m2

Detail

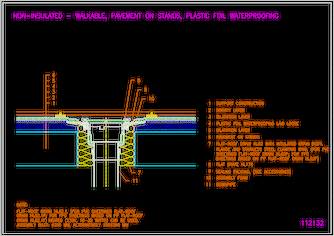

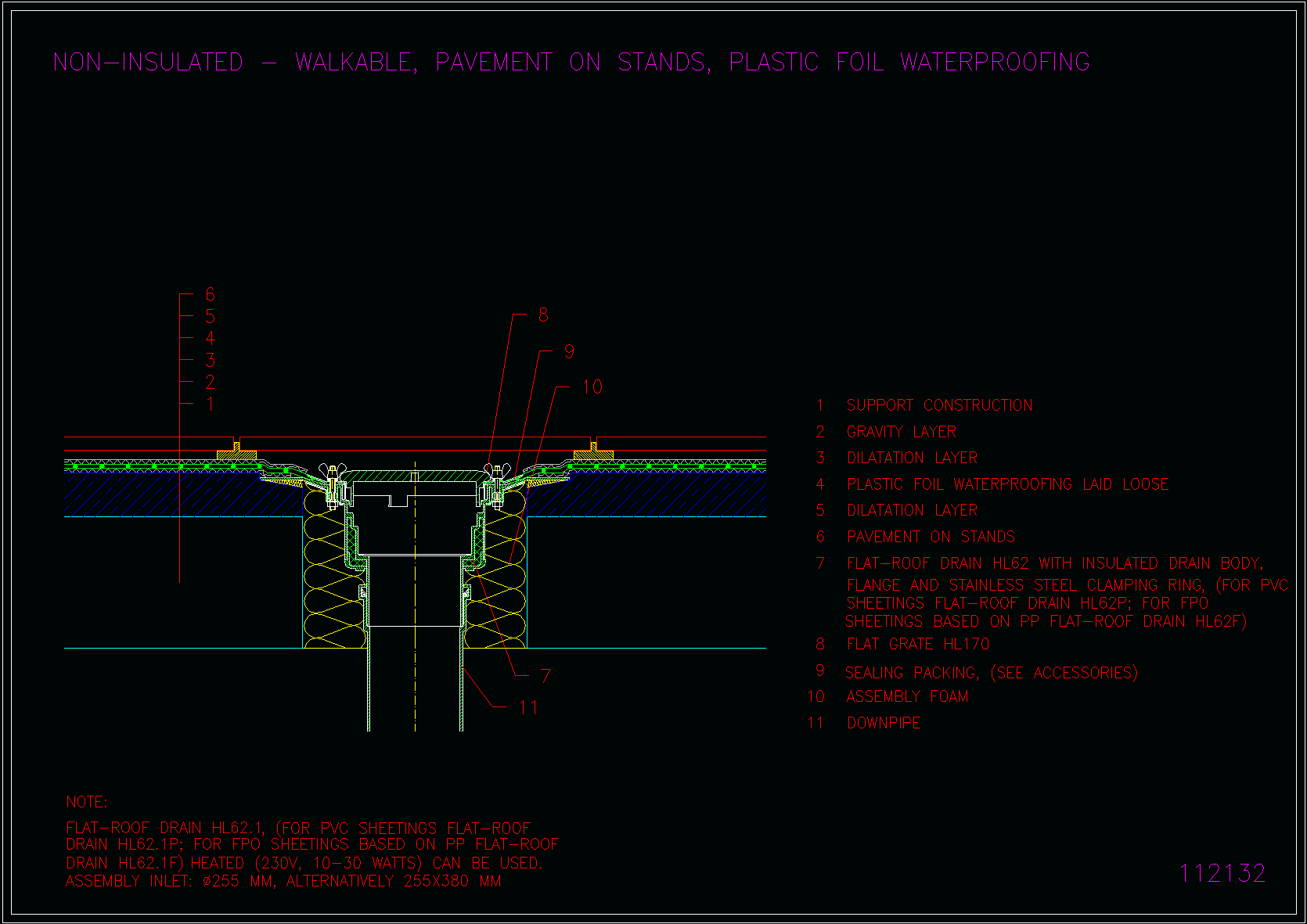

drawing 112132

layer section

· pavers on stands
· plastic foil waterproofing
· separating and dilatation layer
· concrete (gravity layer or ceiling structure)

Recommended products

HL62

HL62P

HL170

Comment

Heated roof drains
Attachments
Installation advice
